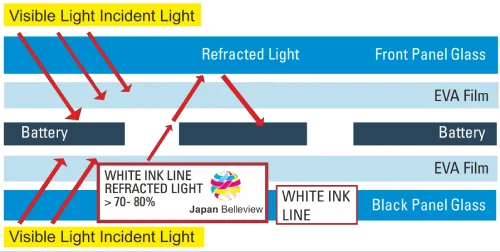

Spinks World is proud to offer highly reflective photovoltaic glass enamels used in solar panels. These highreflection white enamels boost the power generation efficiency of PV modules, while high-transparent color enamels serve decorative purposes. Made with eco-friendly, water-based enamel mediums, our coatings are tested for safety & deliver exceptional performance.
Features
Highly Reflective
Improve Power Generation Efficiency
Corrosion Resistance
Ball Impact Resistance
Qualify Performance Test
Heavy Metal Free
Weather Resistance
SGS Environmental Protection Certified
Physical Properties
Code / Item
Unit
Parameters
BJ-HP-1-8W
1. Solid Contain
%
78 ± 2
81.15
2. Particle Size
um
<10
22~26
3. Wet Film Thickness
um
20 ± 8
77.184
4. Adhesion
/
0 Grade Cross Knife Test
0 Grade
5. Reflection Rate
%
>100 (glaze up)
81.15
6. Gloss
/
2.7 ± 0.5 Glossmeter
3.1
7. Optical Density
/
1.00 ± 0.2
0.954
8. Peel Off EVA Film Strength Test
N
>70N
>70N
9. Potential Induced Degradation Test
%
1500V, 85°C, 85%RH, 96h
No discoloration in appearance
No discoloration in appearance
No discoloration
10. Pressure Cook Test Aging
/
121°C, 100%RH, 96h
R<1% adhesion level
R<1% adhesion level
Pass
11. Intensity Test
MPa
<10
78.02
12. Ball Drop Test
/
227g steel ball height 70cm
10 glass pass rate>70%
10 glass pass rate>70%
95cm height pass rate>90%
Beyond our leading in specialized glass enamel solutions, Spinks World also offers AR coatings for Solar Panels
