PHOTOVOLTAIC GLASS ENAMEL FOR SOLAR PANELS

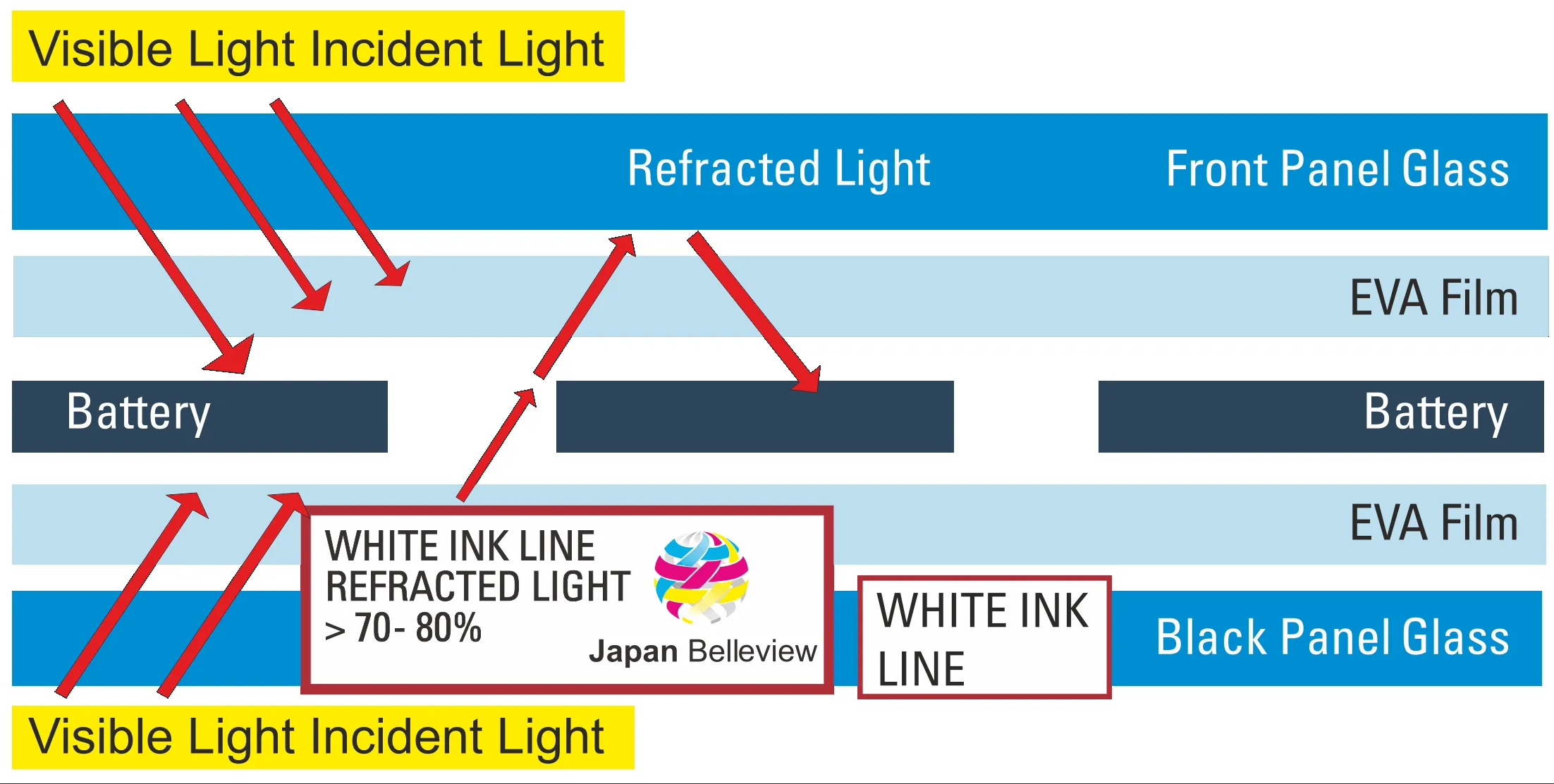

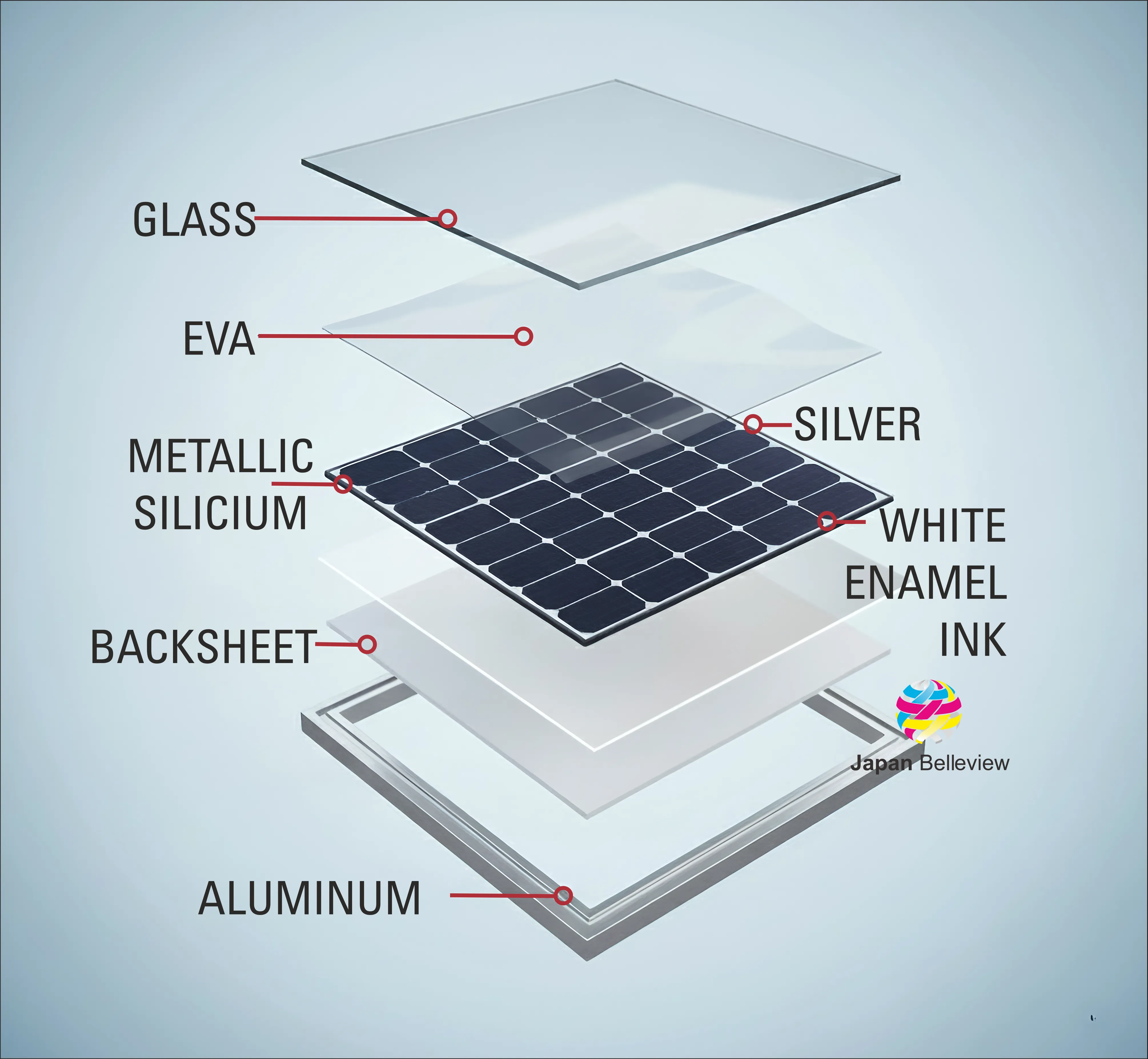

Spinks World is proud to offer highly reflective photovoltaic glass enamels used in solar panels. These highreflection white enamels boost the power generation efficiency of PV modules, while high-transparent color enamels serve decorative purposes. Made with eco-friendly, water-based enamel mediums, our coatings are tested for safety & deliver exceptional performance.
Features
Highly Reflective
Improve Power Generation Efficiency
Corrosion Resistance
Ball Impact Resistance
Qualify Performance Test
Heavy Metal Free
Weather Resistance
SGS Environmental Protection Certified
Physical Properties
Code / Item
Unit
Parameters
BJ-HP-1-8W
1. Solid Contain
%
78 ± 2
81.15
2. Particle Size
um
<10
22~26
3. Wet Film Thickness
um
20 ± 8
77.184
4. Adhesion
/
0 Grade Cross Knife Test
0 Grade
5. Reflection Rate
%
>100 (glaze up)
81.15
6. Gloss
/
2.7 ± 0.5 Glossmeter
3.1
7. Optical Density
/
1.00 ± 0.2
0.954
8. Peel Off EVA Film Strength Test
N
>70N
>70N
9. Potential Induced Degradation Test
%
1500V, 85°C, 85%RH, 96h
No discoloration in appearance
No discoloration in appearance
No discoloration
10. Pressure Cook Test Aging
/
121°C, 100%RH, 96h
R<1% adhesion level
R<1% adhesion level
Pass
11. Intensity Test
MPa
<10
78.02
12. Ball Drop Test
/
227g steel ball height 70cm
10 glass pass rate>70%
10 glass pass rate>70%
95cm height pass rate>90%
