| Ink series | Finish | Curing Temperature | Thermal Expansion | Application |
|---|---|---|---|---|
Automotive Inks | ||||

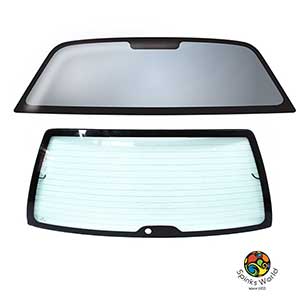

| Auto Glass Black Enamel | Glossy | 680℃-700℃ | (85~95)X107 /K -1(50℃-300℃) | Automotive Industry (Sunroof, Windshield, Toughened/Laminated for front & rear glass, Toughened side glass). |
| Silver Paste for Automotive | Matte | 650℃-700℃ | Rear glass for defogging purpose (Conductive Silver Paste). | |
Glassware Inks | ||||

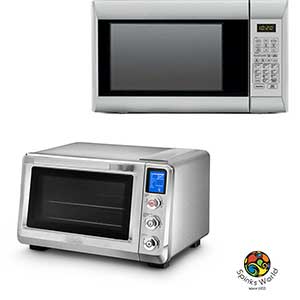

| Ceramic & Borosilicate Glass Enamel | Matte | 680℃-690℃ | <30X107 /K -1 | Stove window, Top plates for electrical or gas cooker, Trays for microwave oven. |

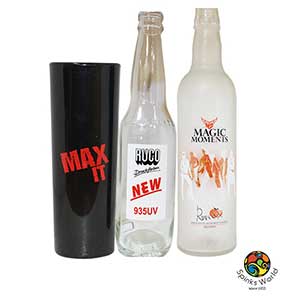

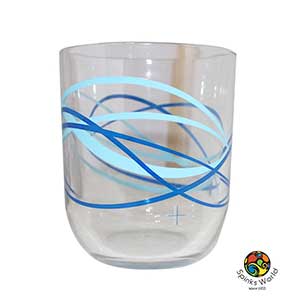

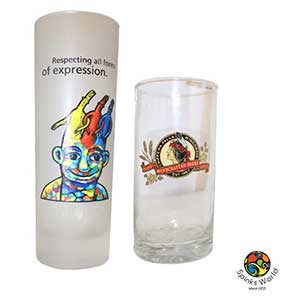

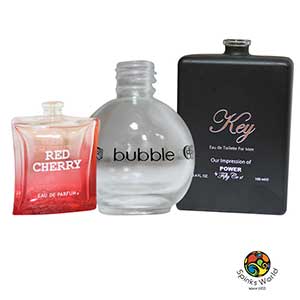

| Glass Enamel for Glassware | Glossy | 520℃-580℃ | (85~95)X107 /K -1(50-300 C) | Lamp glass, Cosmetic & Beverage bottles, Daily glass dinnerware. It is suitable for soda lime glass. |

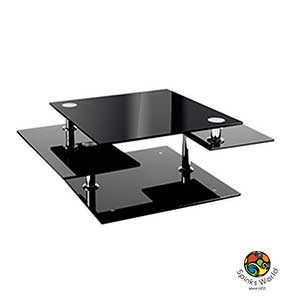

| Glass Enamel for Flat Tempered Glass | Glossy | 650℃-700℃ | 7 (-1) (85~95)X107 /K -1 | Furniture glass - glass doors, Home appliance, Glass for inside use. |
| Metallic & Iridescent Glass Enamel | High Gloss | 580℃-650℃ | (80~95)X107 /K -1 | Architecture glass, Appliances glass, Container glass |
| Mirror Effect Ink for Glass | High Gloss | 680℃-700℃ | To achieve special finish like Electroplating | |
| Ink series | Finish | Properties | Application |
|---|---|---|---|
Touch Panel / LCD | |||
| GLE SERIES SCREEN PRINTING INK ON GLASS | Glossy | Even ink layer after printing,Excellent fineness,good Sieving and Levelling,Good properties and Adhesion on Polarized substrates after curing;High hardness and good water ,weather and chemical resistance | Tempered Glass and Lens,like Mobile,GPS,LCD TV,OGS |
| JM SERIES MIRROR SCREEN INKS | Glossy | Excellent Gloss and coverage,Can be used to take te place of plating and silver stamping | Indicator Plate,Mirror,Card and Membrane film switch used on household appliances |
| GLS SERIES SCREEN PRINTING INK ON GLASS | Glossy | Even ink layer after printing,Excellent fineness,good Sieving and Levelling,Good properties and Adhesion on Polarized substrates after curing;High hardness and good water ,weather and chemical resistance | Tempered Glass and Lens like Mobile,GPS,LCD TV,OGS |
| EM SERIES SCREEN PRINTING INK ON GLASS | Glossy | Even ink layer after printing,Excellent fineness,good Sieving and Levelling,Good properties and Adhesion on Polarized substrates after curing;High hardness and good water ,weather and chemical resistance | Tempered Glass and Lens like Mobile,GPS,LCD TV |
Household Inks | |||
LOW
TEMPERATURE
GLASS INK
EP Series |
Gloss | Excellent fineness, sieving & leveling properties & adhesion. Good water, weather & chemical resistance. | Metal, Glass, Ceramic, Wood, Melamine, UPE, Crosslinking PU, ABS, Treated PP & PE |
LOW
TEMPERATURE
GLASS INK
SGL Series |
Gloss | Excellent printing effect achieved after baking Good weather resistance, excellent adhesion, pressing resistance, bending resistance, chemical resistance, hardness & smooth layer surface. | Glass products like refrigerator, airconditioner |
Sample Gallery
